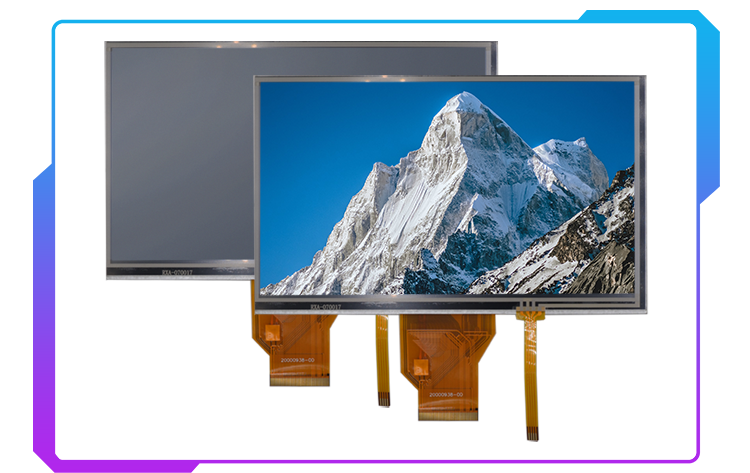

Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen

Name: Oem ASi 7 Inch Display Active Matrix TFT Color LCD Touch Screen
Brand: Formike
Price: 1 USD

Quality Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen for sale

Interface : 50Pin, 24 BIT RGB

Product Name : 7 Inch TFT LCD Touch Screen 50 Pin Display LCD 800x480 With A-Si TFT Technology

Brand Name : Formike

Model Number : KWH070KQ38-F04 V.2

Display Size : 7-inch

Display Type : 7 Inch TN TFT LCD Screen

MOQ : 1 piece

Supply Ability : 5000000000 pieces/year

Resolution : 800*480

Color : Color

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Operating Temperature : -20°C to 70°C

Supply Voltage : 3.3V

Payment Terms : T/T,L/C,Credit card,Cash

Viewing Angle : 12 O'Clock

Dimensions : 164.9mm X 100.0mm X 7.0mm

Packaging Details : Partition + A/S Bag + Corrugated Bar + Carton

Place of Origin : China

Touch Screen : With resistive touch screen

Contact Now

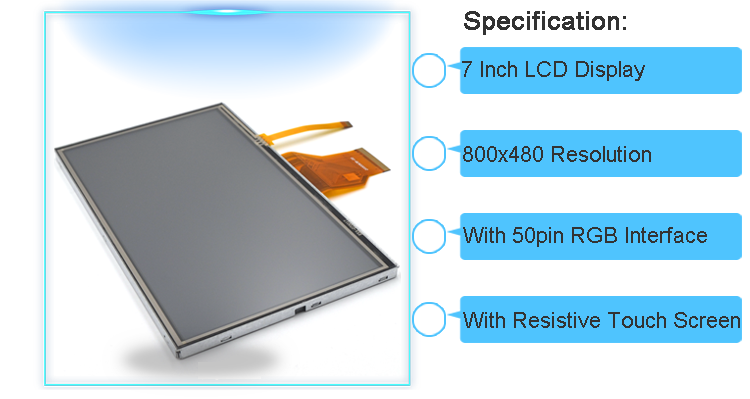

7 Inch TFT LCD Touch Screen 50 Pin Display LCD 800x480 With A-Si TFT Technology

Oem A-Si 7 Inch Display Active Matrix TFT Color LCD Touch Screen

Product Name	7 Inch TFT LCD Touch Screen 50 Pin Display LCD 800x480 With A-Si TFT Technology
LCD Size	7 Inch TFT LCD Display Module
Display Mode	Transmissive
Resolution	800x480
Outline Dimension (mm)	164.90x100.00x7.00
Active Area (mm)	154.08x85.92
Dot pitch (mm)	0.0642x0.1790
Viewing Direction	12 O'clock
Interface	RGB Interface, 50 Pin
Surface Treatment	Anti-Glare
Display element	A-si TFT
Brightness (Cd/m²)	300
Contrast Ratio	500:1
Backlight	27 White LED
Backlight Supply (Current/Voltage)	180mA 9.6V
Touch Screen	With Resistive Touch Panel

* KWH070KQ38-F04 V.2 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
