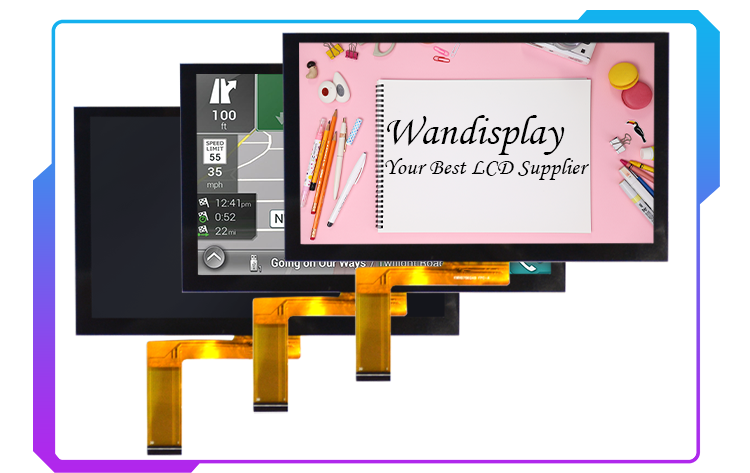

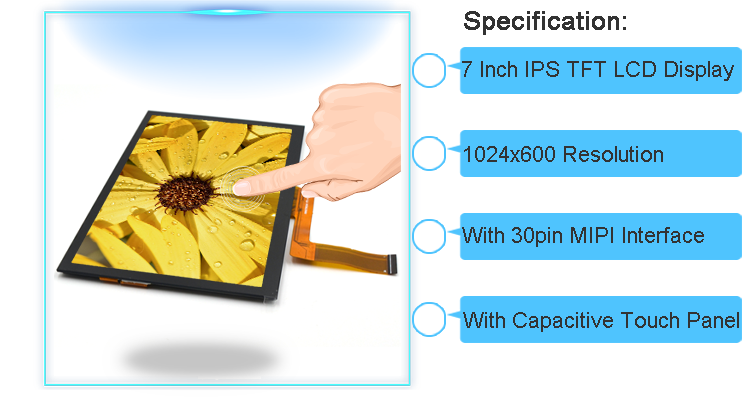

Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen

Name: Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
Brand: Formike
Price: 1 USD

Quality Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen for sale

Touch Screen : With capacitive touch

Interface : 30 Pin, MIPI

Color : Color

Display Type : 7Inch IPS TFT LCD Display

Product Name : LCD Display 7 Inch 1024x600 IPS TFT Touch MIPI Screen

Brand Name : Formike

Payment Terms : T/T,L/C,Credit card,Cash

Packaging Details : Partition + A/S Bag + Corrugated Bar + Carton

Display Size : 7"

MOQ : 1 piece

Operating Temperature : -20°C to 70°C

Supply Ability : 5000000000 pieces/year

Viewing Angle : All

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Supply Voltage : 3.3V

Dimensions : 168.15mm x 99.25mm x 4.60mm

Model Number : KWH070KQ40-C08

Resolution : 1024*600

Place of Origin : China

Contact Now

LCD Display 7 Inch 1024x600 IPS TFT Touch MIPI Screen

Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen

Product Name	LCD Display 7 Inch 1024x600 IPS TFT Touch MIPI Screen
LCD Size	7 Inch TFT LCD Display Module
Display Mode	IPS
Resolution	1024x600
Outline Dimension (mm)	168.15x99.25x4.60
Active Area (mm)	154.21x85.92
Dot pitch (mm)	0.1506x0.1432
Viewing Direction	All
Interface	MIPI Interface, 30 Pin
Driver IC	EK79007AD & EK73215B
Brightness (Cd/m²)	350
Contrast Ratio	800:1
Backlight	27 White LED
Backlight Supply (Current/Voltage)	180mA 9.9V
Touch Screen	With Capacitive Touch Screen Panel

* KWH070KQ40-C08 is a IPS type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Capacitive Touch Panel.

* It is 1024x600 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Capacitive Touch 7 Inch Display 1024x600 IPS TFT MIPI LCD Panel Screen
