Name: STN YN Yellow Green I2C 16x2 LCD Display Module 1602 Alphanumeric Character
Brand: Formike
Price: 1 USD

Backlight : LED

Display format : 16character*2 line

Product Name : 16 * 2 LCD Display 1602 Character LCD Module with STN Y-N Yellow-Green Mode

Brand Name : Formike

Controller : ST7066U-0A

Type : Transmissive Negative

Packaging Details : Tray + Inner Box + Carton

Viewing Angle : 6 O'clock

Dimensions : 122.0mm * 44.0mm * 13.5mm

Place of Origin : China

MOQ : 1 piece

Color : Black display dot on yellow-green background with yellow-green backlight

Display Type : Character LCD

Model Number : WC1602M8SBY6B

Operating Temperature : 0°C to 50°C

Interface : 16-Pin, MPU

Display Mode : STN

Payment Terms : T/T,L/C,Credit card,Cash

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Operating Voltage : 5V

Supply Ability : 5000000000 pieces/year

Contact Now

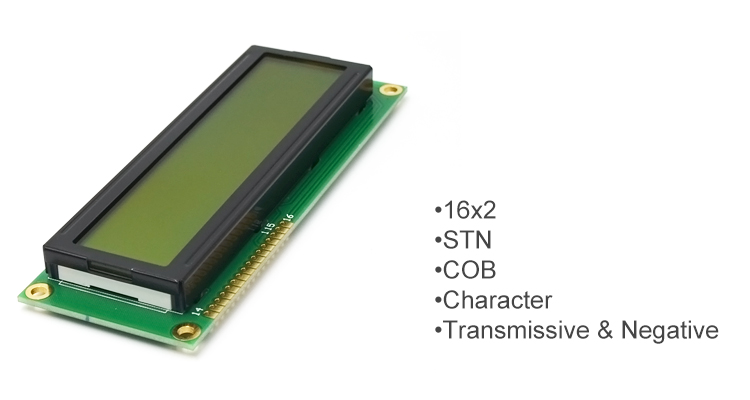

16 * 2 LCD Display 1602 Character LCD Module with STN Y-N Yellow-Green Mode

LCD Name	16 * 2 LCD Display 1602 Character LCD Module with STN Y-N Yellow-Green Mode
Display Format	16character*2 line	Display Mode	STN, Transmissive, Negative
LCD Color	Display dot : Black Background: Yellow-Green	Display Type	Character COB

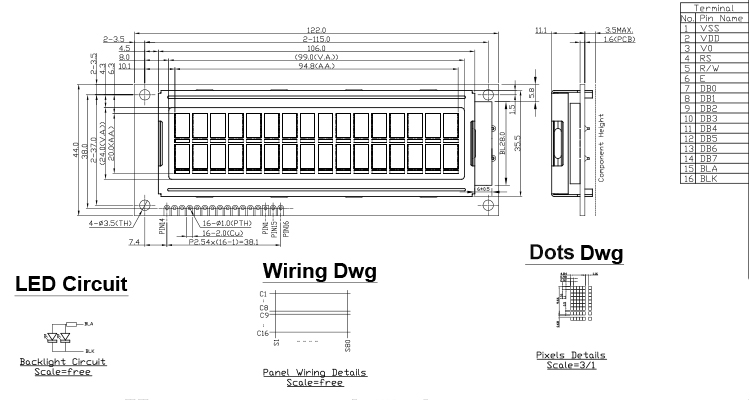

Outline Dimension	122.0(W) x44.0(H) x 13.5(T) mm	Viewing Area	99.0MIN(W) x24.0MIN(H)mm
Drive IC	ST7066U-0A	Pin No.	16 Pin
Viewing Direction	6 O’clock	Interface Input Data	MPU
Backlight	Yellow-Green	Driving Method	1/16 Duty, 1/5 Bias
Operating Temp.	0℃~+50℃	Storage Temp.	-20℃~+70℃
