Name: COB 2x16 LCD Display I2C Module 1602 Screen With 16 Pin Pinout
Brand: Formike
Price: 1 USD

Backlight : LED

Display Mode : STN

Supply Ability : 5000000000 pieces/year

Packaging Details : Tray + Inner Box + Carton

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Product Name : 16x2 LCD Display Module 1602 Screen LCD COB With 16 Pin Pinout

Viewing Angle : 6 O'clock

Operating Temperature : -20°C to 70°C

Model Number : WC1602B5

Dimensions : 84mm * 44mm * 13mm

Operating Voltage : 3.3V / 5V

Display Type : LCD Character Module

Interface : 16-Pin, 4-bit or 8-bit 6800 MPU

Controller : ST7066U or AIP31066

Place of Origin : China

Display format : 16character*2 line

MOQ : 1 piece

Payment Terms : T/T,L/C,Credit card,Cash

Brand Name : Formike

Backlight Color : Usually Y-G or Blue or Gray

Contact Now

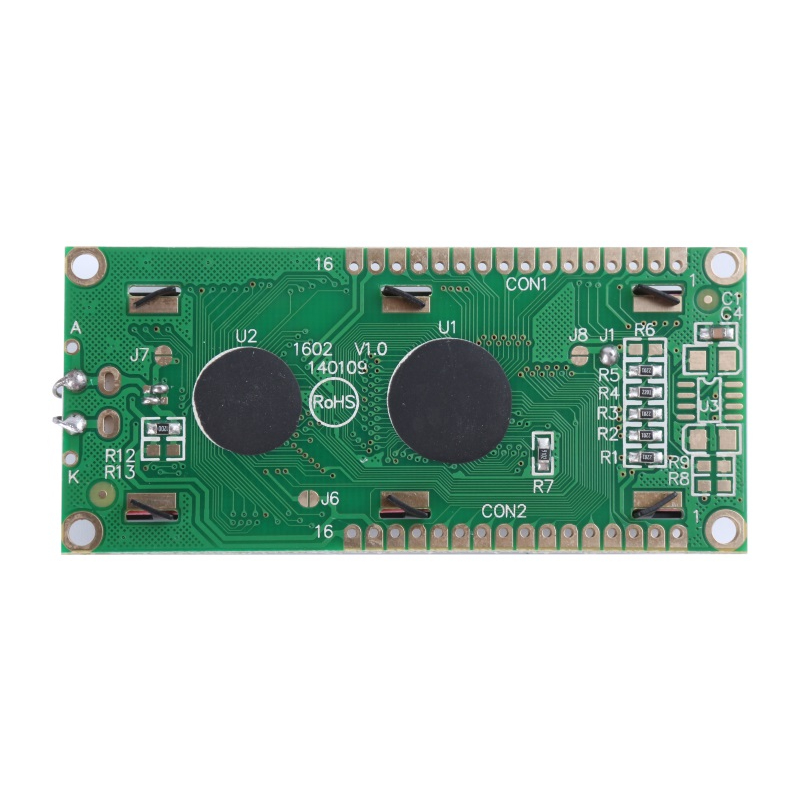

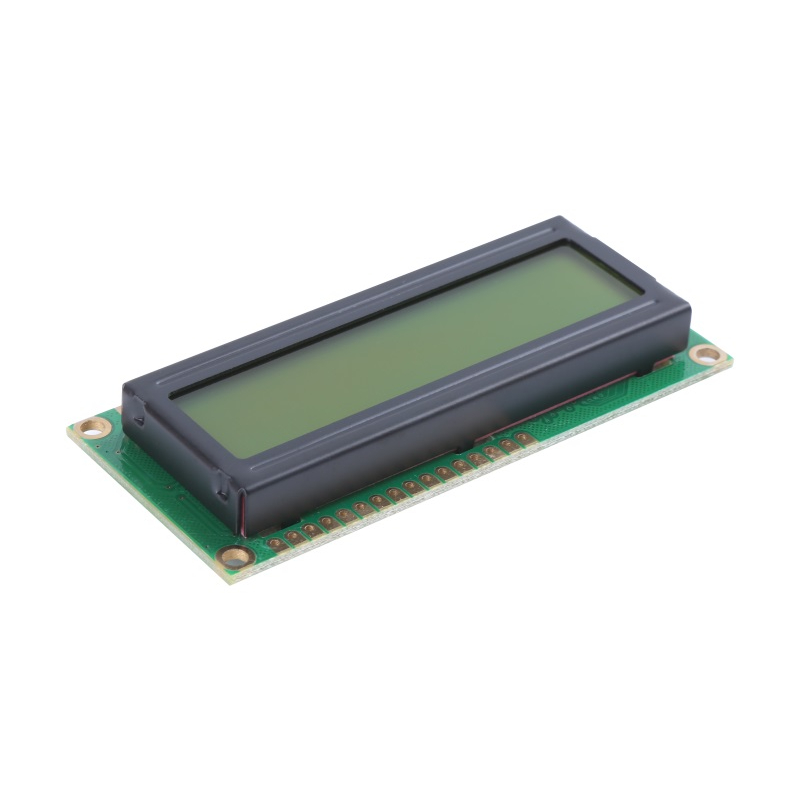

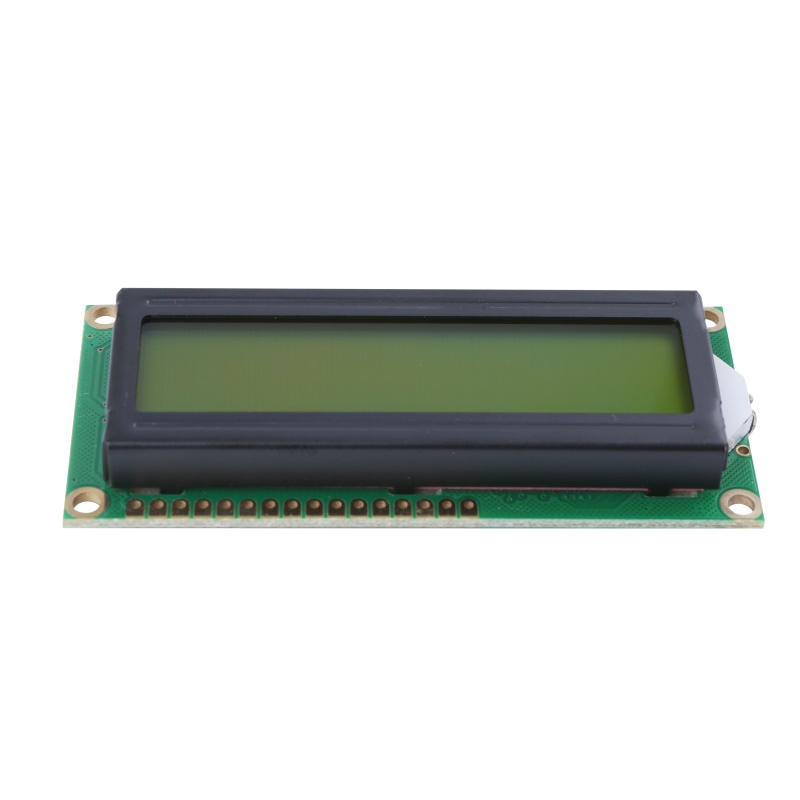

16x2 LCD Display Module 1602 Screen LCD COB With 16 Pin Pinout

COB 2x16 LCD Display I2C Module 1602 Screen With 16 Pin Pinout

Product Specification
LCD Name			16x2 LCD Display Module 1602 Screen LCD COB With 16 Pin Pinout
Display Format			16character*2 line
Module Size			80.0mm×36.0mm×12.5mm
View Area			64.5mm×16.0mm
Character Size			2.96mm×5.53mm
Character Pitch			3.55mm×5.98mm
IC			AIP31066 or Eqv (Defualt English / Japan Font)
Interface			16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method			1/16 Duty, 1/5 Bias
Viewing Direction			6 O’clock
Operating Temperature			-20℃~+70℃
Storage Temperature			-30℃~+80℃
Different series type LCD mode for you to choose
No.	Part Number	LCD Type	Backlight Color	Font Color	Background Color	Voltage
1	WC1602B5SBY6B-A1	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	5V
2	WC1602B5SBY6B-A2	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	3.3V
3	WC1602B5SGW6B-A1	STN Negative Blue	White Color	White Color	Blue Color	5V
4	WC1602B5SGW6B-A2	STN Negative Blue	White Color	White Color	Blue Color	3.3V
5	WC1602B5SKW6B-A1	STN GREY Positive	White Color	Black Color	Grey Color	5V
6	WC1602B5SKW6B-A2	STN GREY Positive	White Color	Black Color	Grey Color	3.3V

COB 2x16 LCD Display I2C Module 1602 Screen With 16 Pin Pinout
