Model Number : KWH080KQ09-C01
Dimensions : 201.0mm x 152.3mm x 4.6mm
Product Name : 1024x768 LCD 8 Inch Touch Screen LVDS TFT Display
Interface : 40Pin, LVDS
Place of Origin : China
Supply Voltage : 3.3V
Resolution : 1024*768
Display Type : 8 Inch TFT LCD Module
MOQ : 1 piece
Brand Name : Formike
Operating Temperature : -10°C to 50°C
Payment Terms : T/T,L/C,Credit card,Cash
Touch Screen : With with capacitive touch screen
Packaging Details : Partition + A/S Bag + Corrugated Bar + Carton
Display Size : 8"
Color : Color
Supply Ability : 5000000000 pieces/year
Viewing Angle : All
Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

| LCD Name | 1024x768 LCD 8 Inch Touch Screen LVDS TFT Display | ||
|
LCD Size |
8 inch |
Resolution |
1024(RGB)x768 Resolution |
|
Surface Treatment |
Anti- Glare type |
FPC Type | 40 pin connector |
|
Outline Dimension |
200X151.3X4.6mm |
Active Area(HxV mm) |
162.05X121.54mm |
|
Viewing Direction |
6 O’clock |
Interface |
Lvds |
|
Operating Temperature |
-20~70℃ |
Blacklight |
12 white LED |
|
Storage Temperature |
-30~80 ℃ |
Touch Panel |
with Capacitive touch panel |


|
|

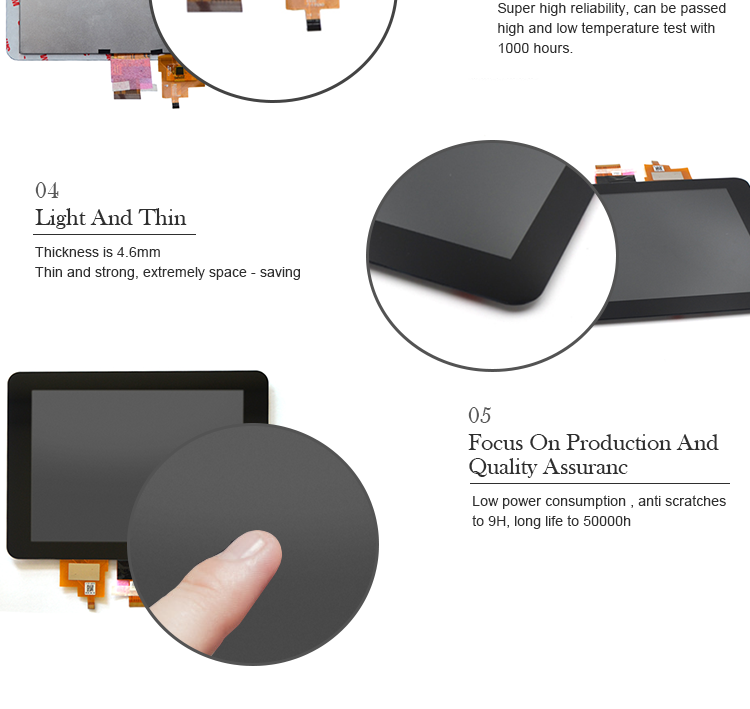

1024x768 8 Inch LVDS Matrix TFT Panel Display LCD Touch Screen Images |
