Dimensions : 174.00mm x 136.00mm x 2.45mm
MOQ : 1 piece
Product Name : 8 Inch LCD 1024x768 Display LVDS IPS TFT Module
Color : Color
Brand Name : Formike
Operating Temperature : -10°C to 50°C
Place of Origin : China
Resolution : 1024 x 768
Touch Screen : Without (Optional with touch screen)
Packaging Details : Partition + A/S Bag + Corrugated Bar + Carton
Payment Terms : T/T,L/C,Credit card,Cash
Model Number : KWH080KQ09-F01 V.2
Display Type : 8 Inch IPS TFT LCD Screen
Display Size : 8inch
Supply Ability : 5000000000 pieces/year
Supply Voltage : 3.3V
Viewing Angle : All
Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Interface : 40 Pin, LVDS

| Product Name | 8 Inch LCD 1024x768 Display LVDS IPS TFT Module |
|---|---|
| LCD Size | 8 Inch TFT LCD Display Module |
| Display Mode | Transmissive |
| Resolution | 1024x768 |
| Outline Dimension (mm) | 174.00x136.00x2.45 |
| Active Area (mm) | 162.05x121.54 |
| Dot pitch (mm) | 0.05275x0.15825 |
| Viewing Direction | All |
| Interface | LVDS Interface, 40 Pin |
| Driver element | a-Si TFT |
| Brightness (Cd/m2) | 350 |
| Contrast Ratio | 800:1 |
| Backlight | 27 White LED |
|
Backlight Supply (Current/Voltage) |
180mA 9.3V |
| Touch Screen | Without |
* KWH080KQ09-F01 V.2 is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is 1024x768 resolution TFT LCD module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.


|
|

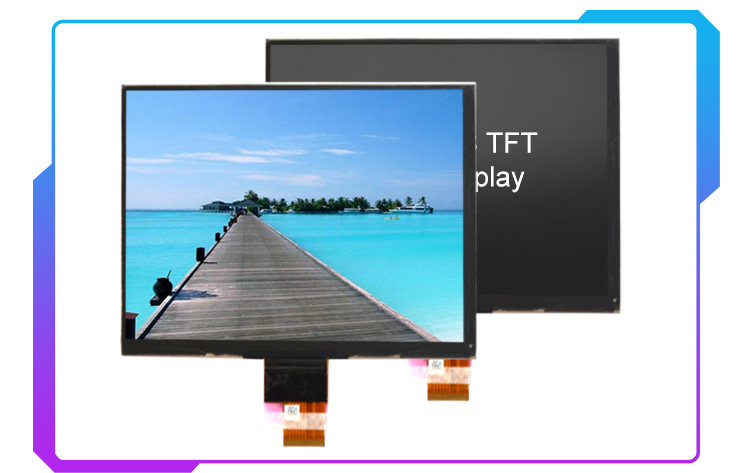

Custom 8 Inch LVDS IPS TFT LCD Module Touch Screen Display 1024x768 Images |
