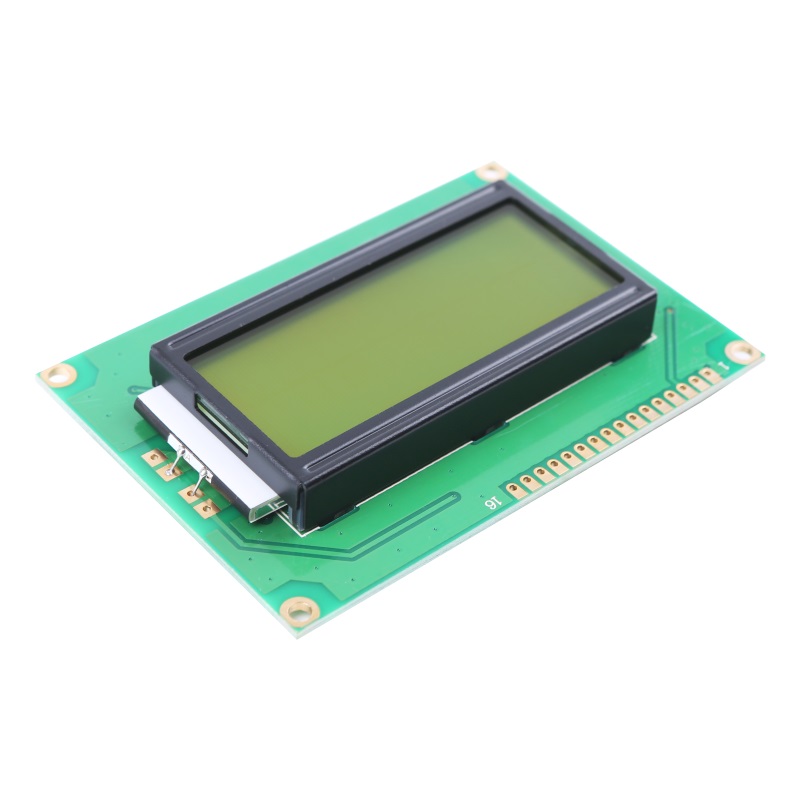

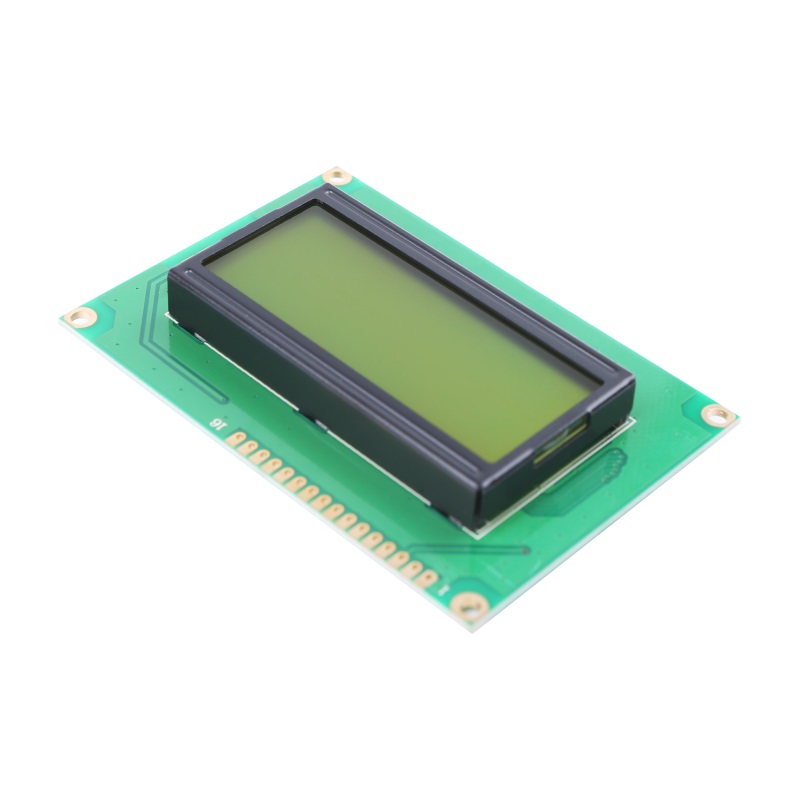

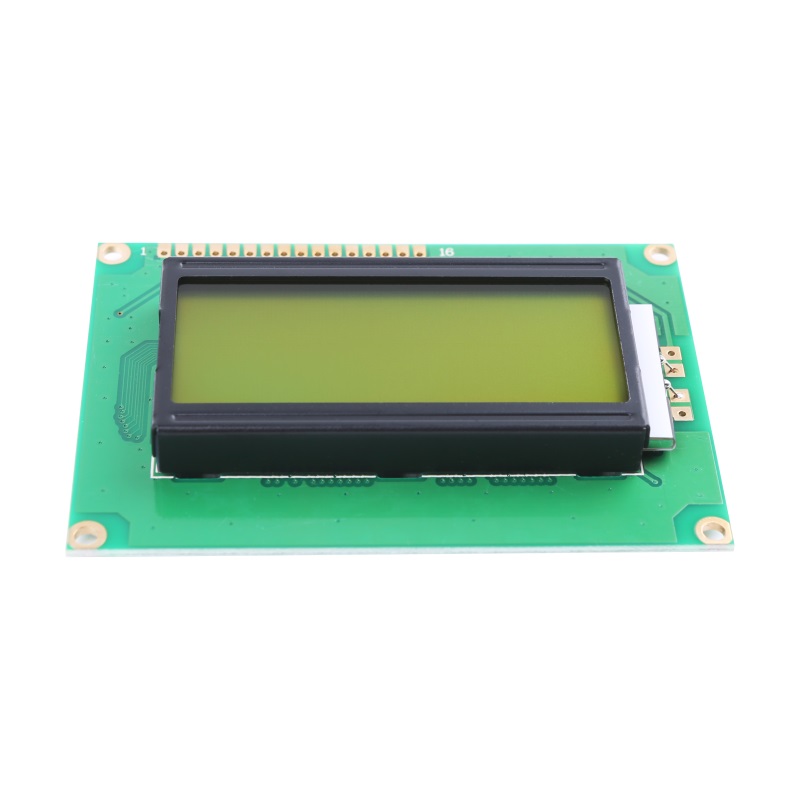

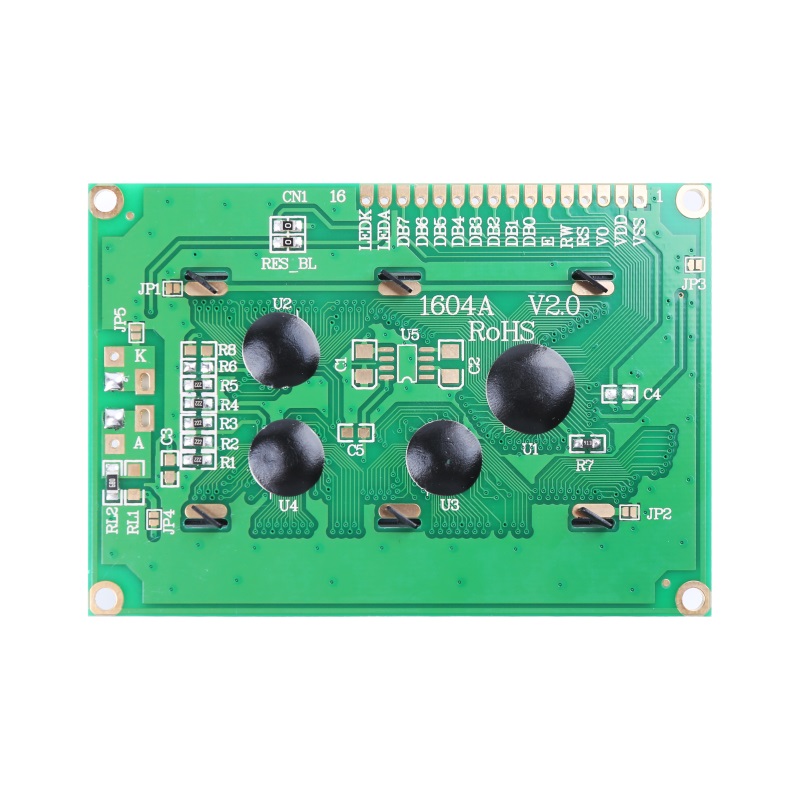

5V 1604a 16x4 LCD Character Module Screen Display AIP31066 IC

Product Categories

Formike Electronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 5V 1604a 16x4 LCD Character Module Screen Display AIP31066 IC
Brand: Formike
Price: 1 USD

Display Type : Character LCD

Viewing Angle : 6 O'clock

Controller : ST7066U or AIP31066

Product Name : 16x4 LCD Display 1604a LCD Char Screen With Character Type

Place of Origin : China

Operating Temperature : -20°C to 70°C

MOQ : 1 piece

Backlight : LED

Interface : 16 Pin, 4-bit or 8-bit 6800 MPU

Brand Name : Formike

Packaging Details : Tray + Inner Box + Carton

Model Number : WC1604B0

Display format : 16character*4 line

Backlight Color : Usually Y-G or Blue or Gray

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Dimensions : 87.0mm * 66.0mm * 12.5mm

Supply Ability : 5000000000 pieces/year

Display Mode : STN

Payment Terms : T/T,L/C,Credit card,Cash

Operating Voltage : 3.3V / 5V

Contact Now

16x4 LCD Display 1604a LCD Char Screen With Character Type

5V 1604a 16x4 LCD Character Module Screen Display AIP31066 IC

Product Specification
LCD Name			16x4 LCD Display 1604a LCD Char Screen With Character Type
Display Format			16character*4 line
Module Size			87.0mm×66.0mm×12.5mm
View Area			61.8mm×25.2mm
Character Size			2.95mm×4.75mm
Character Pitch			3.55mm×5.35mm
IC			AIP31066 or Eqv (Defualt English / Japan Font)
Interface			16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method			1/16 Duty, 1/5 Bias
Viewing Direction			6 O’clock
Operating Temperature			-20℃~+70℃
Storage Temperature			-30℃~+80℃
Different series type LCD mode for you to choose
No.	Part Number	LCD Type	Backlight Color	Font Color	Background Color	Voltage
1	WC1604B0SBY6B-A1	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	5V
2	WC1604B0SBY6B-A2	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	3.3V
3	WC1604B0SGW6B-A1	STN Negative Blue	White Color	White Color	Blue Color	5V
4	WC1604B0SGW6B-A2	STN Negative Blue	White Color	White Color	Blue Color	3.3V
5	WC1604B0SKW6B-A1	STN GREY Positive	White Color	Black Color	Grey Color	5V
6	WC1604B0SKW6B-A2	STN GREY Positive	White Color	Black Color	Grey Color	3.3V

5V 1604a 16x4 LCD Character Module Screen Display AIP31066 IC
