Name: 33 V 16x4 Character LCD Display Module COB With STN Mode
Brand: Formike
Price: 1 USD

Place of Origin : China

Display Mode : STN

Controller : ST7066U or AIP31066

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Supply Ability : 5000000000 pieces/year

Product Name : 16x4 Character LCD Display COB LCD Module With STN Mode

Dimensions : 87.0mm * 66.0mm * 12.5mm

Operating Temperature : -20°C to 70°C

Display Type : Character LCD Display Module

Backlight Color : Usually Y-G or Blue or Gray

Brand Name : Formike

Viewing Angle : 6 O'clock

Display format : 16character*4 line

Operating Voltage : 3.3V / 5V

Payment Terms : T/T,L/C,Credit card,Cash

MOQ : 1 piece

Backlight : LED

Model Number : WC1604B2

Packaging Details : Tray + Inner Box + Carton

Interface : 16 Pin, 4-bit or 8-bit 6800 MPU

Contact Now

16x4 Character LCD Display COB LCD Module With STN Mode

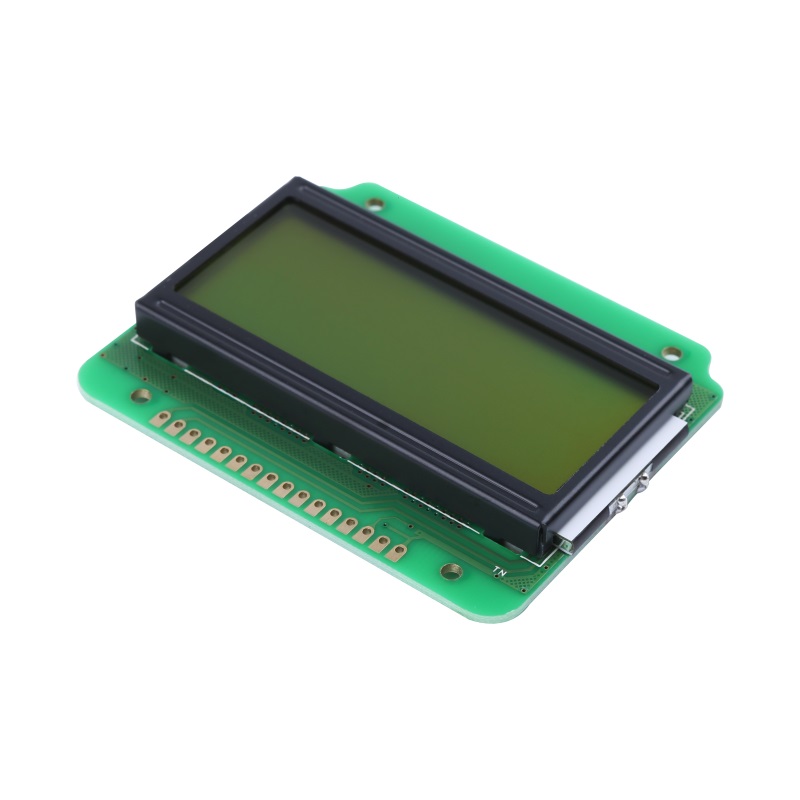

3.3 V 16x4 Character LCD Display Module COB With STN Mode

Product Specification
LCD Name			16x4 Character LCD Display COB LCD Module With STN Mode
Display Format			16character*4 line
Module Size			70.0mm×57.8mm×10.5mm
View Area			61.8mm×25.2mm
Character Size			2.95mm×4.75mm
Character Pitch			3.55mm×5.35mm
IC			AIP31066 or Eqv (Defualt English / Japan Font)
Interface			16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method			1/16 Duty, 1/5 Bias
Viewing Direction			6 O’clock
Operating Temperature			-20℃~+70℃
Storage Temperature			-30℃~+80℃
Different series type LCD mode for you to choose
No.	Part Number	LCD Type	Backlight Color	Font Color	Background Color	Voltage
1	WC1604B2SBY6B-A1	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	5V
2	WC1604B2SBY6B-A2	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	3.3V
3	WC1604B2SGW6B-A1	STN Negative Blue	White Color	White Color	Blue Color	5V
4	WC1604B2SGW6B-A2	STN Negative Blue	White Color	White Color	Blue Color	3.3V
5	WC1604B2SKW6B-A1	STN GREY Positive	White Color	Black Color	Grey Color	5V
6	WC1604B2SKW6B-A2	STN GREY Positive	White Color	Black Color	Grey Color	3.3V

3.3 V 16x4 Character LCD Display Module COB With STN Mode
