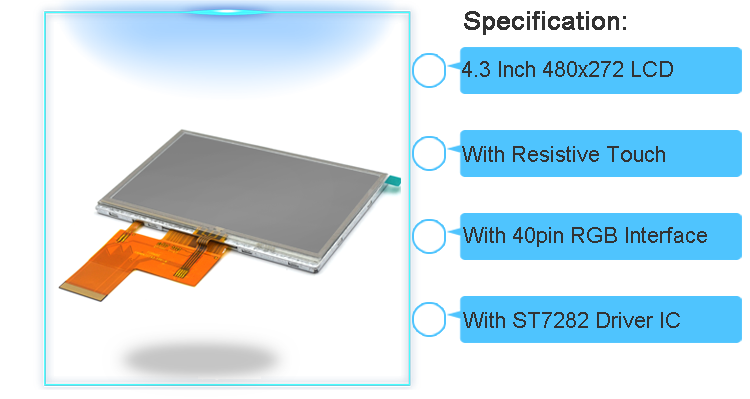

480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V

Name: 480x272 43 Inch TFT Touch Display Screen LCD Module 33V
Brand: Formike
Price: 1 USD

Quality 480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V for sale

Touch Screen : With resistive touch

Dimensions : 105.5mm x 67.2mm x 4.2mm

Payment Terms : T/T,L/C,Credit card,Cash

Supply Ability : 5000000000 pieces/year

Product Name : 4.3 Inch LCD Display 40 Pin Touch Screen 480x272 TFT LCD Module

Operating Temperature : -20°C to 70°C

Interface : 40Pin, 24 BIT RGB

Model Number : KWH043ST43-F02

Controller Ic : ST7282

Display Type : 4.3Inch TFT LCD Panel

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Packaging Details : Tray + Inner Box + Carton

Supply Voltage : 3.3V

Viewing Angle : 6 O'Clock

Display Size : 4.3 inch

Color : Color

Brand Name : Formike

Resolution : 480 * 272

Place of Origin : China

MOQ : 1 piece

Contact Now

4.3 Inch LCD Display 40 Pin Touch Screen 480x272 TFT LCD Module

480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V

Product Name	4.3 Inch LCD Display 40 Pin Touch Screen 480x272 TFT LCD Module
LCD Size	4.3 Inch TFT LCD Display Module
Display Mode	Transmissive
Resolution	480x272
Outline Dimension (mm)	105.50x67.20x4.20
Active Area (mm)	95.04x53.86
Dot pitch (mm)	0.198x0.198
Viewing Direction	6 O'clock
Interface	RGB Interface, 40 Pin
Driver IC	ST7282
Color Depth	16M
Brightness (Cd/m²)	270
Contrast Ratio	500:1
Backlight	7 White LED
Backlight Supply (Current/Voltage)	20mA 22.2V
Touch Screen	With Resistive Touch Panel

* KWH043ST43-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 480x272 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V

Product Tags:

480x272 tft touch display

3.3V tft touch display

480x272 tft screen touch

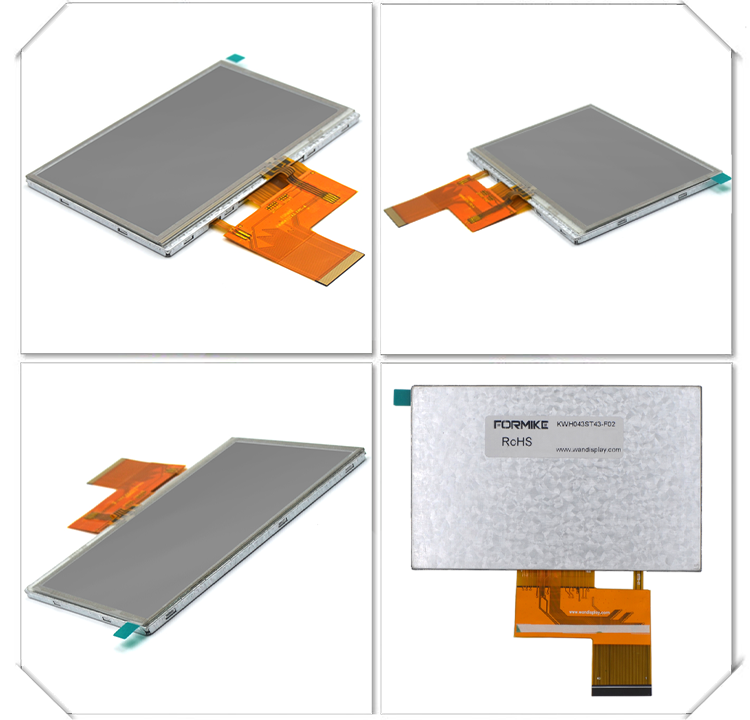

480x272 4.3 Inch TFT Touch Display Screen LCD Module 3.3V Images
