Capacitive Touch RGB IPS TFT Display 4.3" LCD Screen 800x480

Name: Capacitive Touch RGB IPS TFT Display 43quot LCD Screen 800x480
Brand: Formike
Price: 1 USD

Quality Capacitive Touch RGB IPS TFT Display 4.3" LCD Screen 800x480 for sale

Touch Screen : With capacitive touch

Packaging Details : Tray + Inner Box + Carton

MOQ : 1 piece

Product Name : 4.3" 800x480 RGB LCD Capacitive Touch TFT And IPS Display 4.3 LCD Screen

Dimensions : 105.5mm x 67.2mm x 4.3mm

Color : Color

Payment Terms : T/T,L/C,Credit card,Cash

Supply Ability : 5000000000 pieces/year

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Display Size : 4.3 inch

Display Type : 4.3 Inch TFT Display

Operating Temperature : -10°C to 60°C

Model Number : KWH043ST42-C01

Place of Origin : China

Interface : 40-Pin, 24 BIT RGB

Display Mode : IPS LCD

Resolution : 800x480

Brand Name : Formike

Viewing Angle : All

Contact Now

4.3" 800x480 RGB LCD Capacitive Touch TFT And IPS Display 4.3 LCD Screen

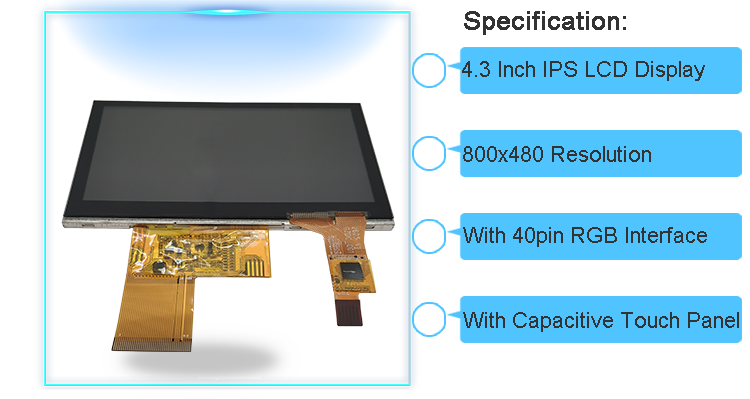

Capacitive Touch RGB IPS TFT Display 4.3" LCD Screen 800x480

Product Name	4.3" 800x480 RGB LCD Capacitive Touch TFT And IPS Display 4.3 LCD Screen
LCD Size	4.3 Inch IPS TFT LCD Display Module
Display Mode	Transmissive
Resolution	800x480
Outline Dimension (mm)	105.50x67.20x4.30
Active Area (mm)	95.04x53.86
Dot pitch (mm)	0.1188x0.1122
Viewing Direction	ALL
Interface	24 BIT RGB Interface, 40 Pin
Color Depth	16M
Brightness (Cd/m²)	350
Contrast Ratio	800:1
Backlight	12 White LED
Backlight Supply (Current/Voltage)	60mA 12.8V
Touch Screen	With Capacitive Touch Panel

* KWH043ST42-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 800x480 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Capacitive Touch RGB IPS TFT Display 4.3" LCD Screen 800x480

Product Tags:

Capacitive ips tft display

800x480 ips tft display

800x480 touch tft display

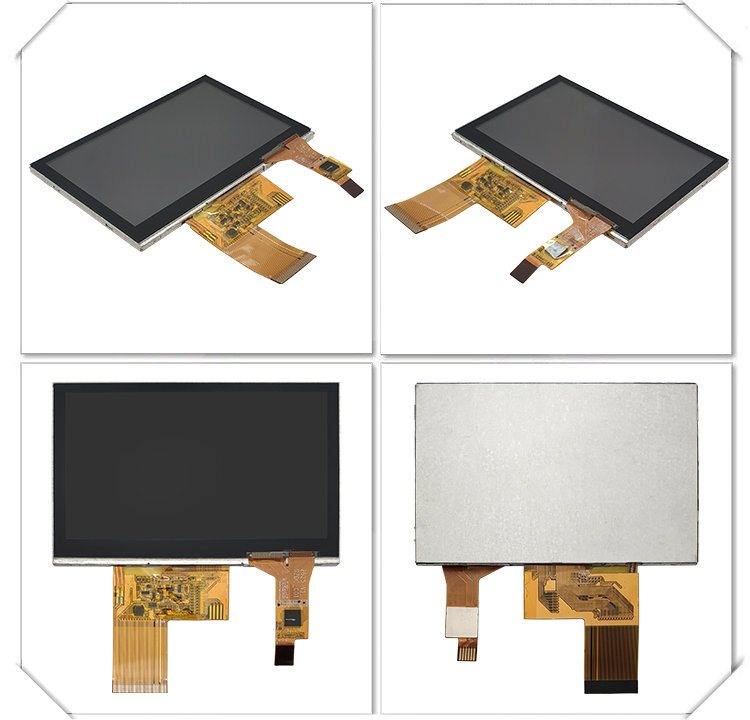

Capacitive Touch RGB IPS TFT Display 4.3" LCD Screen 800x480 Images
