1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240

Name: 13 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
Brand: Formike
Price: 1 USD

Quality 1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240 for sale

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Dimensions : 26.85mm x 29.55mm x 1.98mm

Interface : SPI

MOQ : 1 piece

Packaging Details : Tray + Inner Box + Carton

Product Name : 1.3 Inch LCD Display IPS TFT SPI 240x240 LCD Screen

Supply Voltage : 3.2V

Payment Terms : T/T, L/C, Credit card, Cash

Color : Color

Operating Temperature : -20°C to 70°C

Display Mode : IPS TFT LCD

Brand Name : Formike

Model Number : KWH013ST03-F01

Viewing Angle : Free viewing angle

Display Type : TFT

Display Size : 1.3 inch

Place of Origin : China

Controller Ic : JD9851

Supply Ability : 5000000000 pieces/year

Resolution : 240 x 240

Contact Now

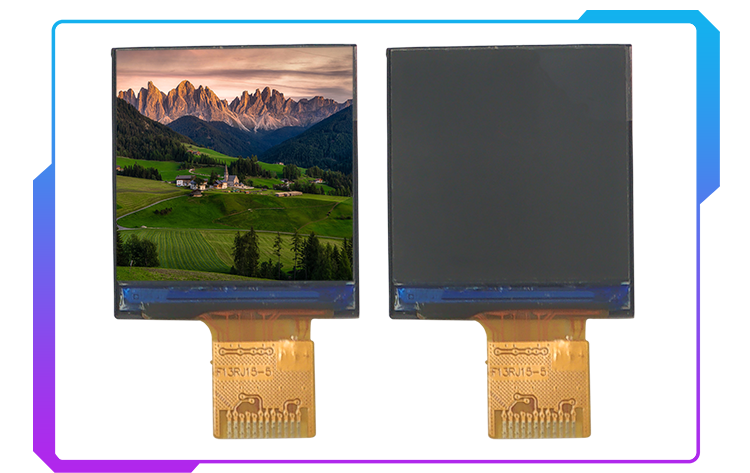

1.3 Inch LCD Display IPS TFT SPI 240x240 LCD Screen

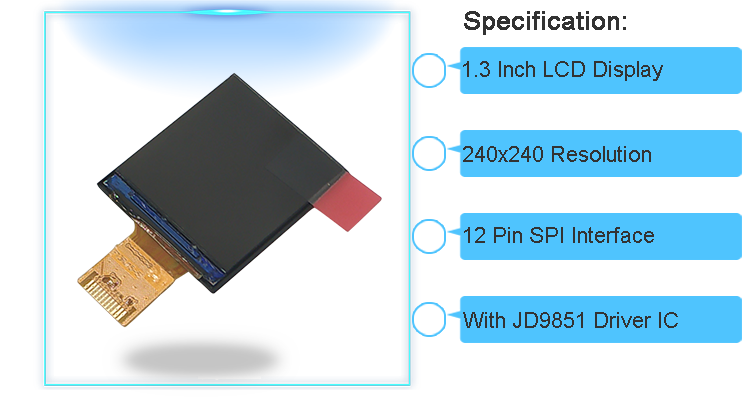

1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240

Product Name	1.3 Inch LCD Display IPS TFT SPI 240x240 LCD Screen
LCD Size	1.3 Inch TFT LCD Display Module
Display Mode	IPS
Resolution	240x240
Outline Dimension (mm)	26.85x29.55x1.98
Active Area (mm)	23.40x23.40
Dot pitch (mm)	0.0975x0.0975
Viewing Direction	All
Interface	SPI Interface, 12 Pin
Driver IC	JD9851
Brightness (Cd/m²)	250
Contrast Ratio	600:1
Backlight	2 White LED in Parallel
Backlight Supply (Current/Voltage)	40mA 3.2V
Touch Screen	Without

* KWH013ST03-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x240 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

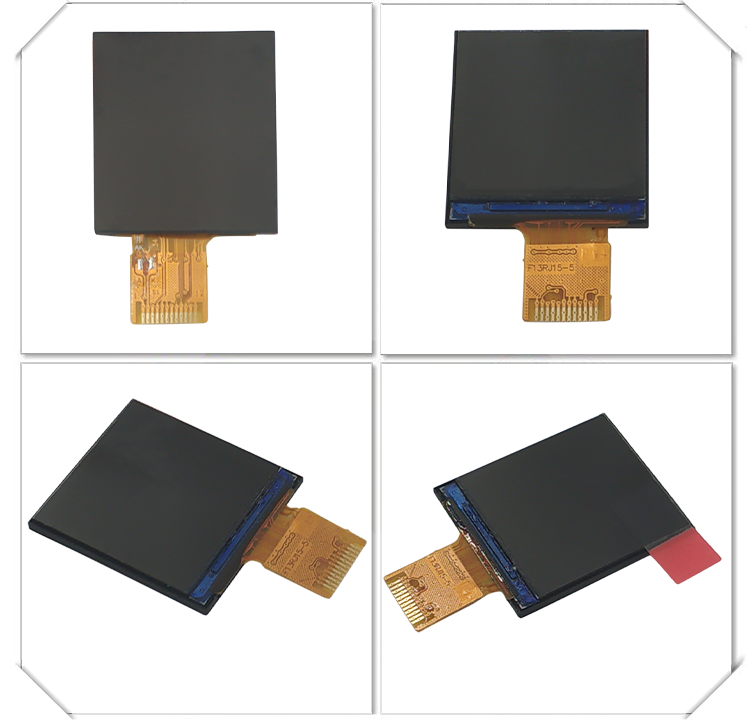

1.3 Inch JD9851 SPI Interface LCD Display Module IPS TFT Screen 240x240
