480x480 Round TFT Display 2.1 LCD Module With 40pin 18 BIT RGB Interface Touch Screen

Name: 480x480 Round TFT Display 21 LCD Module With 40pin 18 BIT RGB Interface Touch Screen
Brand: Formike
Price: 1 USD

Quality 480x480 Round TFT Display 2.1 LCD Module With 40pin 18 BIT RGB Interface Touch Screen for sale

Controller Ic : ST7701S

Dimensions : 71.80mm x 71.80mm x 3.58mm

Supply Voltage : 2.8V~3.2V

Payment Terms : T/T, L/C, Credit card, Cash

Interface : 40 Pin, 18 BIT RGB

Packaging Details : Tray + Inner Box + Carton

Brand Name : Formike

Model Number : KWH021ST01-C01

Product Name : Round TFT LCD 480x480 Display 2.1 LCD Module With 40pin 18 BIT RGB Interface And Touch Screen

Color : Color

Supply Ability : 5000000000 pieces/year

Resolution : 480 x 480

Display Size : 2.1 inch

Place of Origin : China

Viewing Angle : All

Display Type : Round IPS TFT LCD Display

MOQ : 1 piece

Operating Temperature : -20°C to 60°C

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Contact Now

Round TFT LCD 480x480 Display 2.1 LCD Module With 40pin 18 BIT RGB Interface And Touch Screen

480x480 Round TFT Display 2.1 LCD Module With 40pin 18 BIT RGB Interface Touch Screen

LCD Name	Round TFT LCD 480x480 Display 2.1 LCD Module With 40pin 18 BIT RGB Interface And Touch Screen
LCD Size	2.1 inch LCD Module	Resolution	480X480
Outline Dimension	71.80x 71.80 x 3.58mm	Active Area(HxV mm)	53.28x53.28mm
Viewing Direction	All	Interface	18 BIT RGB, 40 Pin
Backlight	4 White LED	Brightness	400cd/m2
Operating Temperature	-20℃~60℃	Backlight Supply Current/Voltage	80mA, 2.8V~3.2V

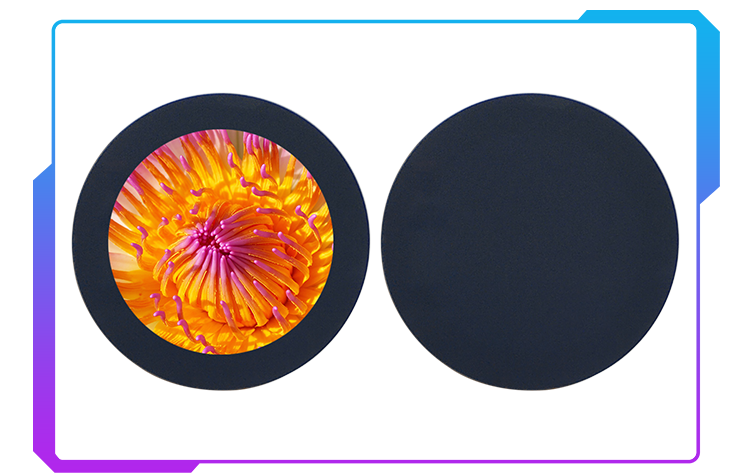

* KWH021ST01-C01 is a small Round Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
