1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel

Name: 169 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
Brand: Formike
Price: 1 USD

Quality 1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel for sale

Controller Ic : JD9851A

Supply Voltage : 3.2V

Display Type : IPS TFT Display

Place of Origin : China

Display Size : 1.69 inch

Brand Name : Formike

Product Name : 1.69 Inch Display TFT MCU 240x280 Smart Watch LCD Screen with JD9851A IC and Touch Panel

Color : Color

Model Number : KWH017ST13-C01

Supply Ability : 5000000000 pieces/year

Dimensions : 34.70mm x × 40.70mm x 3.51mm

Packaging Details : Tray + Inner Box + Carton

Resolution : 240 x 280

Interface : 24Pin, 8 BIT MCU

MOQ : 1 piece

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Viewing Angle : All

Operating Temperature : -20°C to 70°C

Payment Terms : T/T, L/C, Credit card, Cash

Contact Now

1.69 Inch Display TFT MCU 240x280 Smart Watch LCD Screen with JD9851A IC and Touch Panel

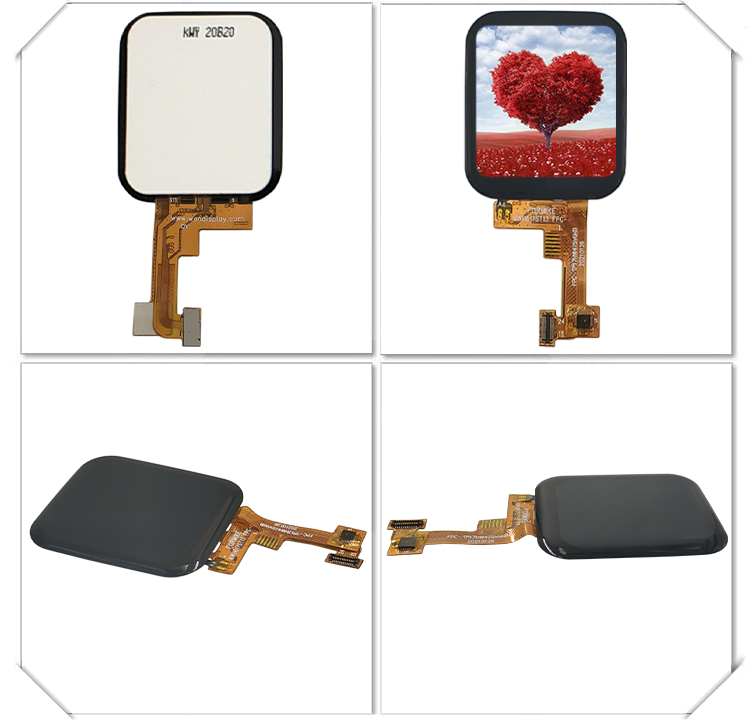

1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel

Product Name	1.69 Inch Display TFT MCU 240x280 Smart Watch LCD Screen with JD9851A IC and Touch Panel
LCD Size	1.69 Inch TFT LCD Display Module
Display Mode	IPS
Resolution	240x280
Outline Dimension (mm)	34.70x40.70x3.51
Active Area (mm)	27.97x32.63
Dot pitch (mm)	0.11655x0.11655
Viewing Direction	All
Interface	8bit MCU Interface, 24 Pin
Driver IC	JD9851A (Optional with ST7789V driver ic)
Brightness (Cd/m²)	300
Contrast Ratio	800:1
Backlight	3 White LED
Backlight Supply (Current/Voltage)	60mA 3.2V
Touch Screen	With Capacitive Touch Panel

Feature:
1. LCM with CTP by OCA bonding;
2. Super thin, 1.53mm only when withon touch;
3. Bigger screen, less Bezel (AA is 27.97mm x 32.63 mm on 34.70 x 40.70mm outline dimension);
4. Intergrated two FPCs into one;
5. FPC has already bonded a connector;
6. The interface is MCU 8bit;
7. When LCM has CTP attached, the brightness is 300cd/m2, and without CTP, it is 350cd/m2;
8. CTP has already bonded a chip;
9. Cover glass of CTP is with 2.5D;
10. Cover glass of CTP is with AF Anti-fingerprint.

* KWH017ST13-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 240x280 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

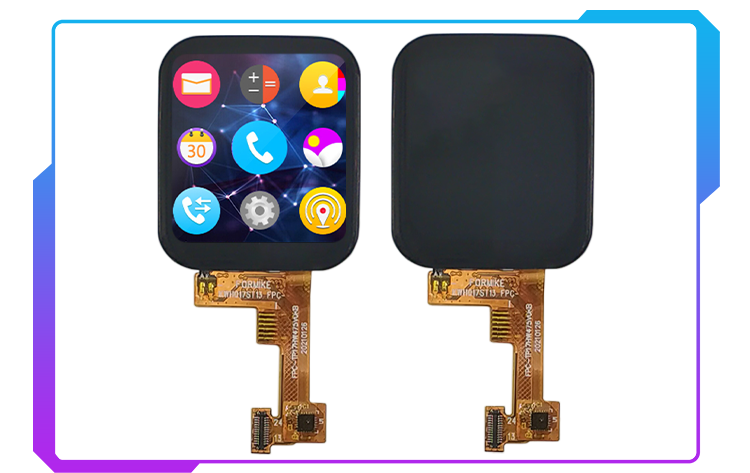

1.69 Inch TFT LCD Touch Screen Module MCU 240x280 Smartwatch Panel
