240x320 3.2 Inch TFT Display Touch LCD Screen Module ILI9341 Driver IC

Name: 240x320 32 Inch TFT Display Touch LCD Screen Module ILI9341 Driver IC
Brand: Formike
Price: 1 USD

Quality 240x320 3.2 Inch TFT Display Touch LCD Screen Module ILI9341 Driver IC for sale

Display Type : 3.2 Inch TFT LCD Module

Brand Name : Formike

Display Size : 3.2-inch

Resolution : 240x320

Place of Origin : China

Payment Terms : T/T, L/C, Credit card, Cash

Viewing Angle : 12 O'Clock

Dimensions : 55.94mm x 77.60mm x 2.40mm

Product Name : 240x320 TFT LCD Module 3.2 Inch LCD Screen Serial TFT Display With ILI9341 Driver IC

Supply Voltage : 3.2V

Packaging Details : Tray + Inner Box + Carton

Touch Screen : Without (Optional with touch screen)

Interface : 46Pin, 8/16/18 BIT MCU, 16/18 RGB, 4W /3W SPI

Model Number : KWH032ST05-F01

Supply Ability : 5000000000 pieces/year

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Color : Color

MOQ : 1 piece

Controller Ic : ILI9341

Operating Temperature : -20°C to 70°C

Contact Now

240x320 TFT LCD Module 3.2 Inch LCD Screen Serial TFT Display With ILI9341 Driver IC

240x320 3.2 Inch TFT Display Touch LCD Screen Module ILI9341 Driver IC

LCD Name	240x320 TFT LCD Module 3.2 Inch LCD Screen Serial TFT Display With ILI9341 Driver IC
Type	3.2 Inch LCD Module	Resolution	240(RGB)X320 Resolution
Color Depth	65K/262K	Contrast Ratio	500:1
Outline Dimension	55.94x 77.60 x 2.40mm	Active Area(HxV mm)	48.60x64.80mm
Viewing Direction	12 O'Clock	Interface	MCU, RGB, Serial, SPI, 46 Pin
Backlight	5 LED	Brightness	330cd/m2
Operating Temperature	-20℃~70℃	Backlight Supply Current/Voltage	75mA, 3.3V

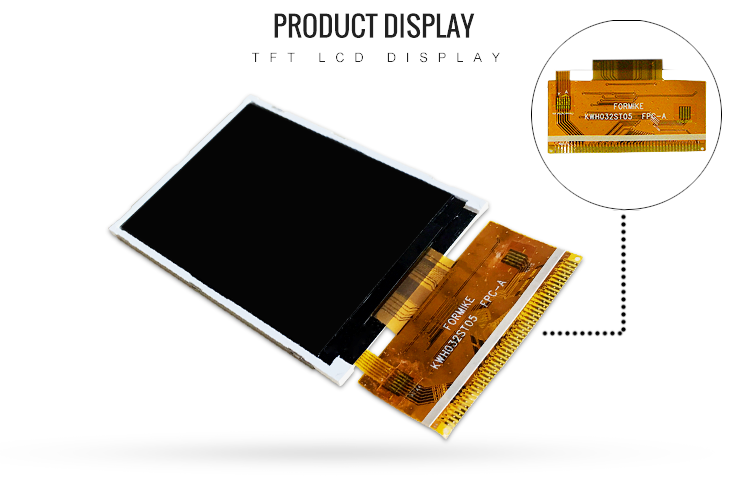

* KWH032ST05-F01 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
