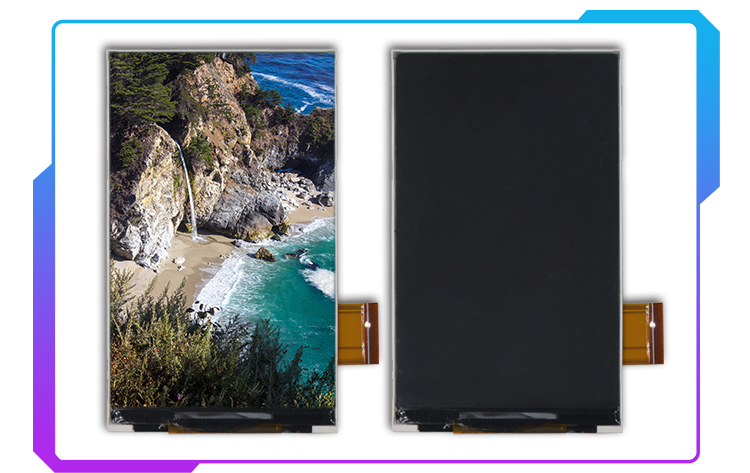

480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC

Name: 480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
Brand: Formike
Price: 1 USD

Quality 480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC for sale

Display Size : 4 Inch / 3.97 Inch

Operating Temperature : -20°C to 70°C

Product Name : 480x800 LCD 4 Inch TFT Display IPS Panel With NT35510 Driver IC

Interface : 51 Pin, 24 BIT RGB/MCU

Supply Ability : 5000000000 pieces/year

Touch Screen : Without (Option with touch screen)

Place of Origin : China

Color : Color

Resolution : 480 x 800

Display Type : 4.0 Inch IPS TFT LCD Display

Payment Terms : T/T, L/C, Credit card, Cash

MOQ : 1 piece

Viewing Angle : All

Brand Name : Formike

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Dimensions : 57.14mm x 96.85mm x 2.30mm

Model Number : KWH040ST04-F01

Packaging Details : Tray + Inner Box + Carton

Controller Ic : NT35510

Supply Voltage : 3.7V

Contact Now

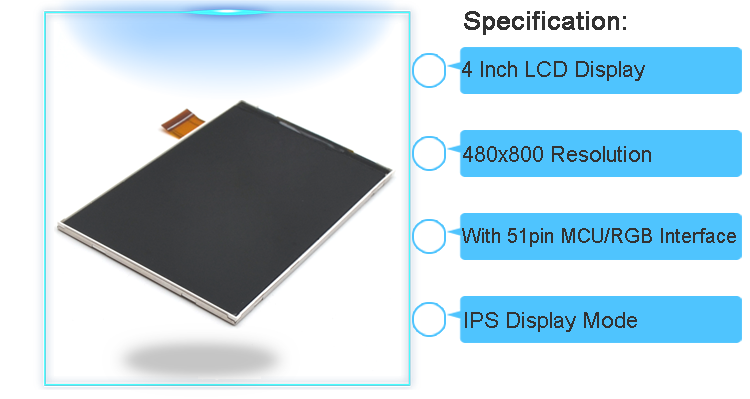

480x800 LCD 4 Inch TFT Display IPS Panel With NT35510 Driver IC

480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC

Product Name	480x800 LCD 4 Inch TFT Display IPS Panel With NT35510 Driver IC
LCD Size	4 Inch TFT LCD Display Module
Display Mode	IPS
Resolution	480x800
Outline Dimension (mm)	57.14x96.85x2.30
Active Area (mm)	51.84x86.40
Dot pitch (mm)	0.108x0.108
Viewing Direction	All
Interface	MCU RGB Interface, 51 Pin
Driver IC	NT35510
Brightness (Cd/m²)	250
Contrast Ratio	900:1
Backlight	8 White LED in Serial
Backlight Supply (Current/Voltage)	20mA 25V
Touch Screen	Without (Optional with)

* KWH040ST04-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 480x800 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC

Product Tags:

IPS transflective color tft

NT35510 transflective color tft

NT35510 touch screen tft lcd

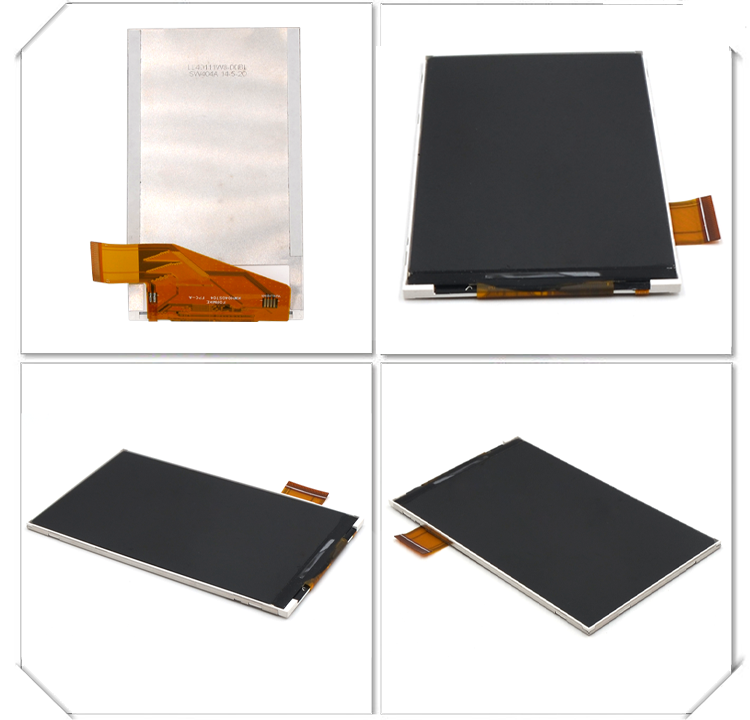

480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC Images
