ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240

Name: ODM Colour LCD Module Mini TFT Display Screen 35 Inch Touch LCD 320x240
Brand: Formike
Price: 1 USD

Quality ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240 for sale

Viewing Angle : 6 O'Clock

Display Size : 3.5inch

Product Name : 320x240 LCD Module TFT Screen Touch 3.5 Inch TFT LCD Display

MOQ : 1 piece

Dimensions : 76.90mm x 63.90mm x 3.15mm

Payment Terms : T/T, L/C, Credit card, Cash

Brand Name : Formike

Interface : 54Pin, 24 BIT RGB

Place of Origin : China

Packaging Details : Tray + Inner Box + Carton

Touch Screen : With resistive touch panel

Supply Voltage : 3.3V

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Supply Ability : 5000000000 pieces/year

Resolution : 320x240

Model Number : KWH035ST18-F04 V.1

Color : Color

Controller Ic : HX8238D

Display Type : 3.5-Inch LCD Display

Operating Temperature : -20°C to 70°C

Contact Now

320x240 LCD Module TFT Screen Touch 3.5 Inch TFT LCD Display

ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240

Product Name	320x240 LCD Module TFT Screen Touch 3.5 Inch TFT LCD Display
LCD Size	3.5 Inch TFT LCD Display Module with Touch Panel
Display Mode	Transmissive
Resolution	320x240
Outline Dimension (mm)	76.90x63.90x3.15
Active Area (mm)	70.08x52.56
Dot pitch (mm)	0.219x0.219
Viewing Direction	6 O'Clock
Interface	24 BIT RGB Interface, 54 Pin
Driver IC	HX8238D
Brightness (Cd/m²)	250
Contrast Ratio	500:1
Backlight	6 White LED
Backlight Supply (Current/Voltage)	20mA 19.8V
Touch Screen	With Resistive Touch Screen

* KWH035ST18-F04 V.1 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Resistive Touch Panel.

* It is 320x240 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240

Product Tags:

ODM mini tft display

3.5Inch mini tft display

320x240 colour tft display

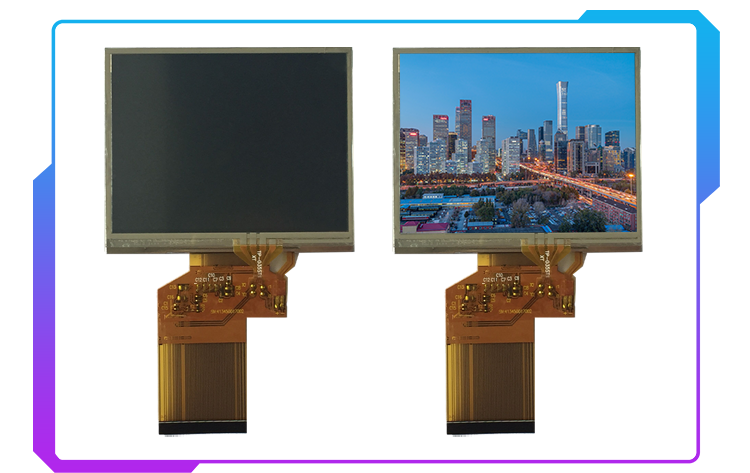

ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240 Images
