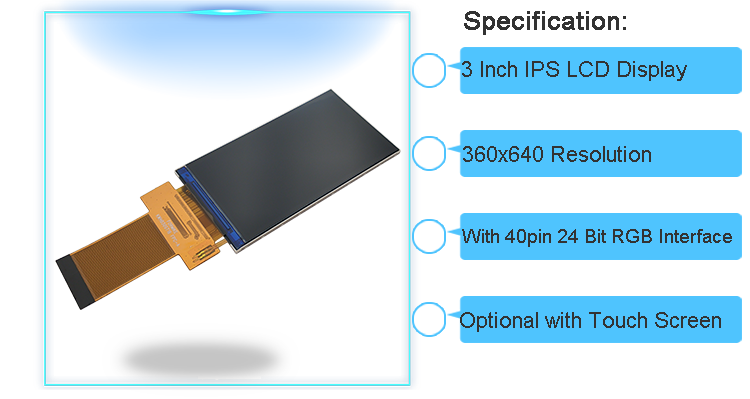

360x640 IPS Hdmi TFT Display Screen 3 Inch Small LCD For Consumer Electronics

Name: 360x640 IPS Hdmi TFT Display Screen 3 Inch Small LCD For Consumer Electronics
Brand: Formike
Price: 1 USD

Quality 360x640 IPS Hdmi TFT Display Screen 3 Inch Small LCD For Consumer Electronics for sale

Display Type : Small IPS TFT LCD Panel

Interface : 40 Pin, 24 BIT RGB

Model Number : KWH030ST16-F01

Dimensions : 41.80mm ×73.97mm ×2.15mm

Product Name : 360x640 IPS LCD Screen 3 Inch TFT Display Small LCD For Consumer Electronics

Supply Ability : 5000000000 pieces/year

Supply Voltage : 2.8V

MOQ : 1 piece

Touch Screen : Without (Optional with touch screen)

Resolution : 360x640

Controller Ic : ST7701S

Place of Origin : China

Operating Temperature : -20°C to 70°C

Packaging Details : Tray + Inner Box + Carton

Payment Terms : T/T, L/C, Credit card, Cash

Viewing Angle : All

Brand Name : Formike

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Display Size : 3.0 inch

Color : Color

Contact Now

360x640 IPS LCD Screen 3 Inch TFT Display Small LCD For Consumer Electronics

360x640 IPS Hdmi TFT Display Screen 3 Inch Small LCD For Consumer Electronics

Product Name	360x640 IPS LCD Screen 3 Inch TFT Display Small LCD For Consumer Electronics
LCD Size	3 Inch IPS TFT LCD Display Screen
Display Mode	IPS
Resolution	360x640
Outline Dimension (mm)	41.80 x 73.97 x 2.15
Active Area (mm)	36.72 x 65.13
Dot pitch (mm)	0.102x0.102
Viewing Direction	All
Interface	24 BIT RGB Interface, 40 Pin
Driver IC	ST7701S
Brightness (Cd/m²)	600
Contrast Ratio	1200:1
Backlight	6 White LED
Backlight Supply (Current/Voltage)	20mA 19.2V
Touch Screen	Optional with Touch Screen

* KWH030ST16-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight.

* It is 360x640 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Key Feature:

• Small Portrait LCD

• 3.0 inch 360x640 TFT LCD display

• IPS display type & All viewing angle

• High brightness is up to 600cd/m²

• With 40pin 24bit RGB interface

• It's widely used for Handheld PDA, Industrial, Healthcare, Portable Navigation, MP3 PMP, Instruments Meters, Mobile Phone, Automotive Display and other small portrait lcd display solution.
