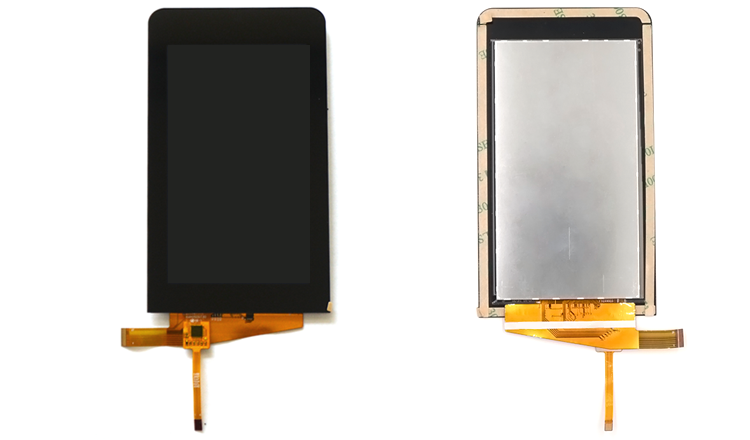

5 Inch TFT MIPI DSI LCD Display Touch Screen 720x1280 Customized

Name: 5 Inch TFT MIPI DSI LCD Display Touch Screen 720x1280 Customized
Brand: Formike
Price: 1 USD

Quality 5 Inch TFT MIPI DSI LCD Display Touch Screen 720x1280 Customized for sale

Color : Color

Operating Temperature : -20°C to 70°C

Product Name : 5 Inch TFT LCD 720x1280 Display MIPI DSI Touch Screen

Model Number : KWH050ST26-S01

Resolution : 720 x 1280

Controller Ic : ILI9881

Viewing Angle : All

Touch Screen : With capacitive touch panel

Place of Origin : China

MOQ : 1 piece

Supply Voltage : 3.3V

Interface : 27 Pin, 4 LANE MIPI

Brand Name : Formike

Supply Ability : 5000000000 pieces/year

Display Size : 5inch

Dimensions : 80.70mmx 141.84mm x 3.55mm

Payment Terms : T/T,L/C,Credit card,Cash

Packaging Details : Tray + Inner Box + Carton

Display Type : 5Inch IPS TFT LCD Display

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Contact Now

5 Inch TFT LCD 720x1280 Display MIPI DSI Touch Screen

5 Inch TFT MIPI DSI LCD Display Touch Screen 720x1280 Customized

LCD Name	5 Inch TFT LCD 720x1280 Display MIPI DSI Touch Screen
LCD Size	5 inch LCD Module
Display Mode	Transmissive TFT LCD
Panel Type	IPS
Touch Panel	With Capacitive Touch Screen
Resolution	720x1280
Outline Dimension	80.70x141.84 x3.55mm
Active Area	62.10x110.40mm
Brightness	200cd/m2
Contrast Ratio	800:1

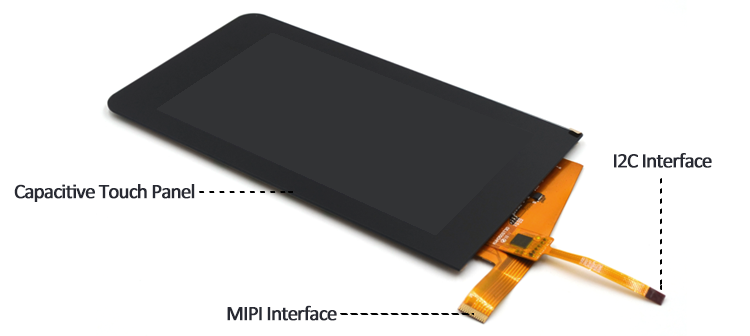

Interface	MIPI, I2C
Connector	27 Pin FPC
Backlight	12 White LED
Driver IC	ILI9881
Color Depth	16M
Viewing Direction	Free Viewing Angle
Supply Voltage Supply Current Power dissipation	19.2V 40mA 768mW
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

* KWH050ST26-S01 is a IPS type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.
* It is 720x1280 resolution TFT LCD module.
* Backlight with different brightness options from 100 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
5 Inch TFT MIPI DSI LCD Display Touch Screen 720x1280 Customized
