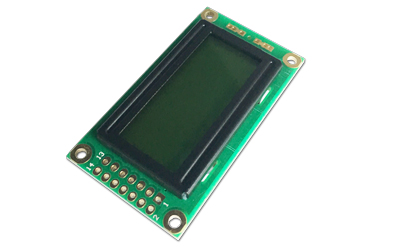

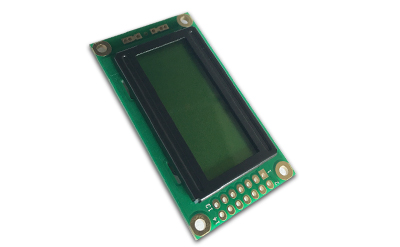

Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface

Product Categories

Formike Electronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
Brand: Formike
Price: 1 USD

Interface : 14 Pin

Backlight : Without

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Type : Reflective Positive

Supply Ability : 5000000000 pieces/year

Place of Origin : China

MOQ : 1 piece

Product Name : Character LCD Display 8x2 China Monochrome LCD Module with 14 Pin Interface and STN Y-N Reflective Positive Type

Packaging Details : Tray + Inner Box + Carton

Color : Black display dot on yellow-green background without backlight

Display Type : Character LCD Module

Operating Temperature : 0°C to 50°C

Operating Voltage : 5V

Display format : 8character*2 line

Display Mode : STN

Payment Terms : T/T,L/C,Credit card,Cash

Model Number : WC0802Z3SAN1B

Brand Name : Formike

Dimensions : 58.0mm *32.0mm * 8.9mm

Controller : ST7066U-0A

Viewing Angle : 6 O'clock

Contact Now

Character LCD Display 8x2 China Monochrome LCD Module with 14 Pin Interface and STN Y-N Reflective Positive Type

Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface

LCD Name	Character LCD Display 8x2 China Monochrome LCD Module with 14 Pin Interface and STN Y-N Reflective Positive Type
Display Format	8x2 Dots	Display Mode	STN, Positive, Reflective
LCD Color	Display dot : Black, Background: White	Dot Size	0.56(W) X 0.66(H)
Outline Dimension	58.00(W) x32.00(H) x8.90(T) mm	Viewing Area	38.00MIN(W) x16.00MIN(H)mm
Viewing Direction	6 O’clock	Interface Input Data	Parallel or serial
Backlight	Without	Driving Method	1/16 Duty, 1/5 Bias
Working Temp.	0℃~+50℃	Storage Temp.	-10℃~+60℃

Monochrome Character LCD Display 8x2 I2c Module With 14 Pin Interface
