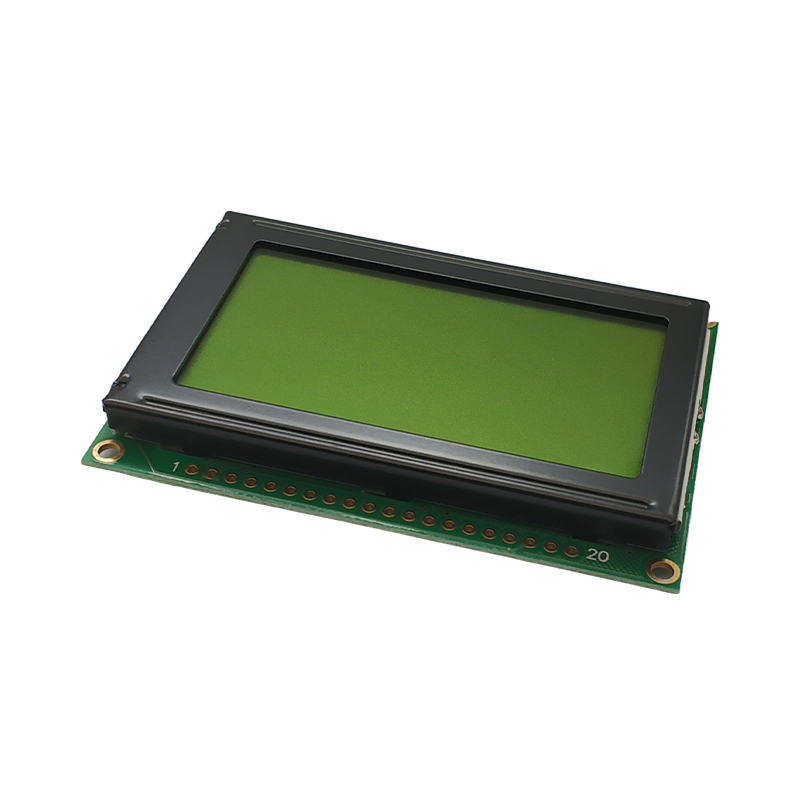

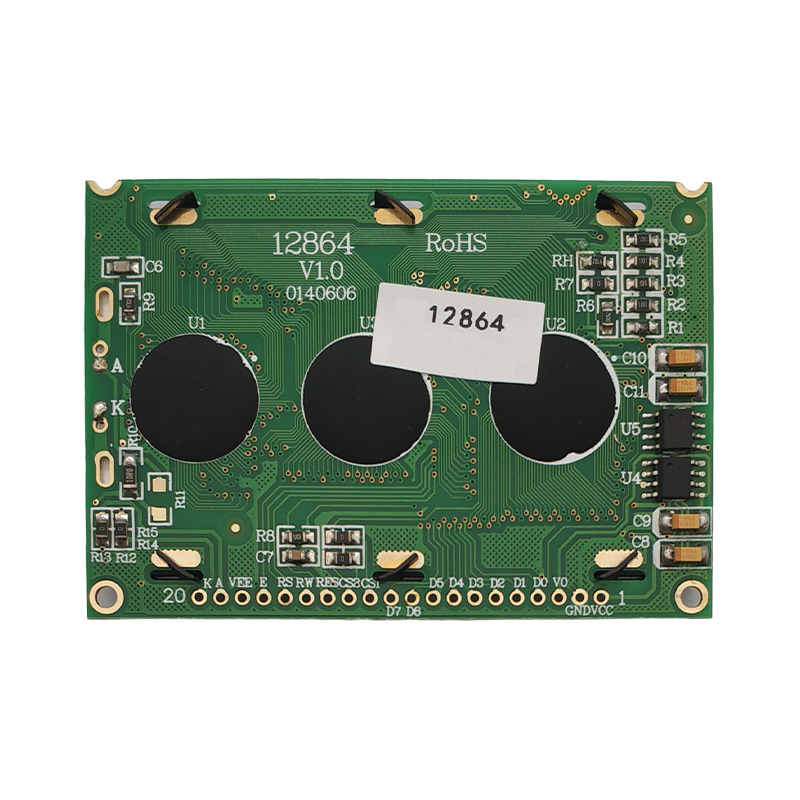

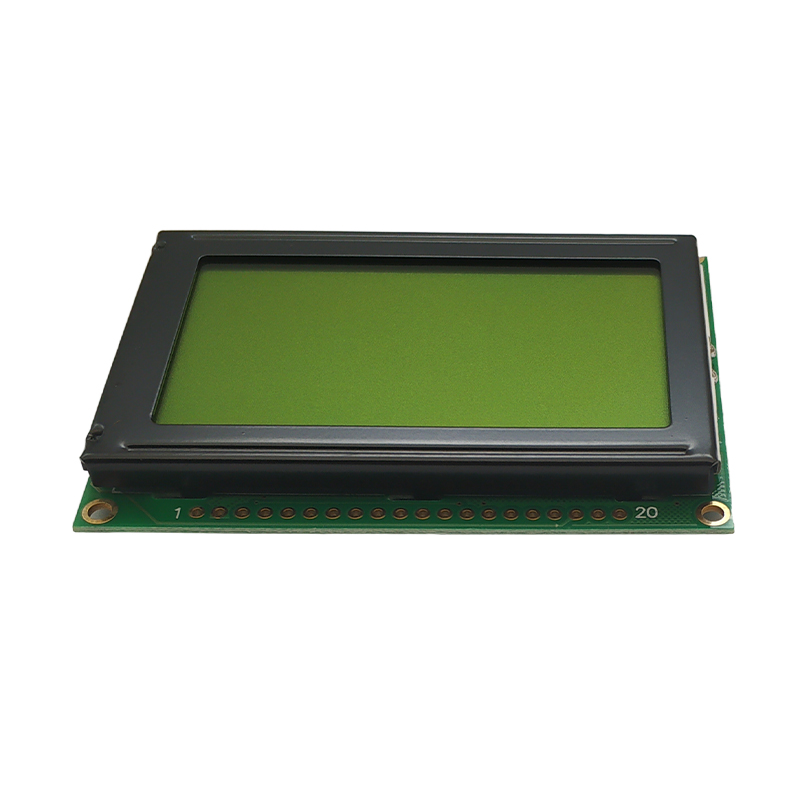

STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight

Product Categories

Formike Electronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
Brand: Formike
Price: 1 USD

Place of Origin : China

Interface : 20 Pin, 8-bit MPU

Backlight : LED

Supply Ability : 5000000000 pieces/year

Product Name : 12864 LCD Screen STN Display 128*64 LCM LCD Module

Display Type : Graphic LCD Screen

Brand Name : Formike

Packaging Details : Tray + Inner Box + Carton

Dimensions : 75.0mm * 52.7mm * 8.9mm

Display Format : 128x64 Dots

Viewing Angle : 6 O'clock

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Operating Temperature : -20°C to 70°C

MOQ : 1 piece

Controller : KS0107 & KS0108

Model Number : WG1206B7

Display Mode : STN

Payment Terms : T/T,L/C,Credit card,Cash

Operating Voltage : 3.3V / 5V

Backlight Color : Usually Y-G or Blue or Gray

Contact Now

12864 LCD Screen STN Display 128*64 LCM LCD Module

STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight

Product Specification
LCD Name			12864 LCD Screen STN Display 128*64 LCM LCD Module
Display Format			128*64 Dots
Module Size			75.0mm×52.7mm×8.9mm
View Area			60.0mm×32.6mm
Active Area			55.01mmx27.49mm
Dot Size			0.40mm×0.40mm
Dot Pitch			0.43mm×0.43mm
IC			KS0107 & KS0108
Interface			20 Pin, 8-bit MPU interface enabled
Driving Method			1/64 Duty, 1/9 Bias
Viewing Direction			6 O’clock
Operating Temperature			-20℃~+70℃
Storage Temperature			-30℃~+80℃
Different series type LCD mode for you to choose
No.	Part Number	LCD Type	Backlight Color	Font Color	Background Color	Voltage
1	WG1206B7SBY6B-A1	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	5V
2	WG1206B7SBY6B-A2	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	3.3V
3	WG1206B7SGW6B-A1	STN Negative Blue	White Color	White Color	Blue Color	5V
4	WG1206B7SGW6B-A2	STN Negative Blue	White Color	White Color	Blue Color	3.3V
5	WG1206B7SKW6B-A1	STN GREY Positive	White Color	Black Color	Grey Color	5V
6	WG1206B7SKW6B-A2	STN GREY Positive	White Color	Black Color	Grey Color	3.3V
